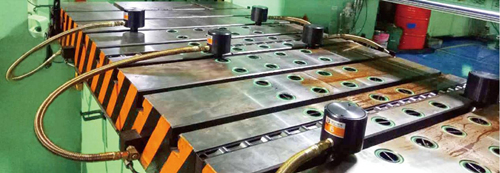

The die clamp is divided into upper and lower clamps, and the functions are: Clamping of punching machine,injection machine and hydraulic press mold.
>> Specifications
|
Model |
Unit |
TX-2 |
TX-4 |
TX-6 |
TX-10 |
TX-16 |
TX-25 |
|
Clamping Farce(at 250kgf/cm2) |
tons |
2 |
4 |
6.3 |
10 |
16 |
25 |
|
Full Stroke (X) |
mm |
8 |
8 |
8 |
8 |
8 |
8 |
|
Clamping Stroke (Y) |
mm |
4 |
3 |
3 |
3 |
3 |
3 |
|
Extra Stroke (Z) |
mm |
4 |
5 |
5 |
5 |
5 |
5 |
|
Cylinder Capacity at Full Stroke |
cc |
6.5 |
13 |
21 |
32 |
54 |
84 |

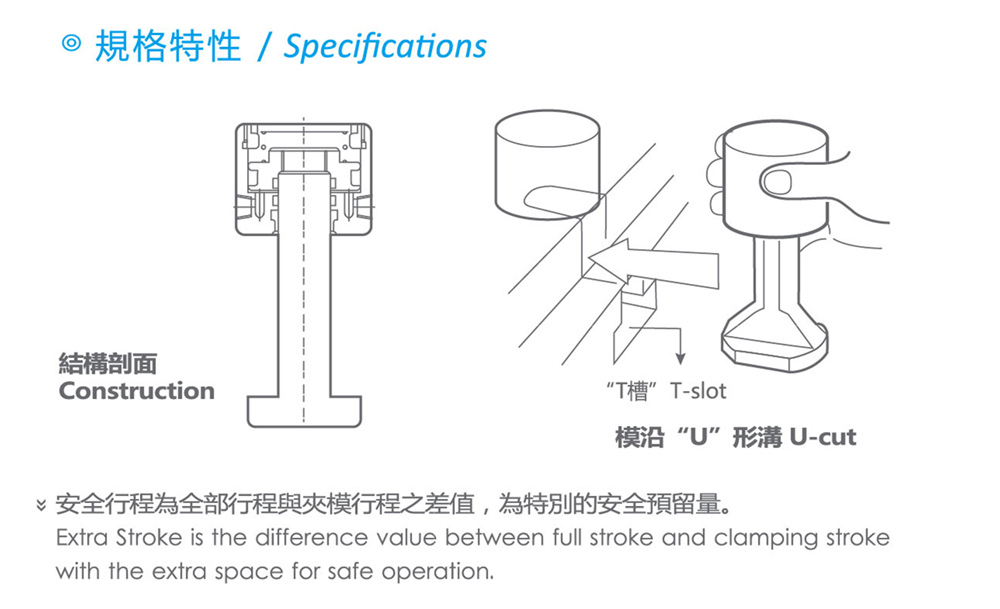

* Extra stroke is the difference between full stroke and clamping stroke with extra space allowed for safe operation.

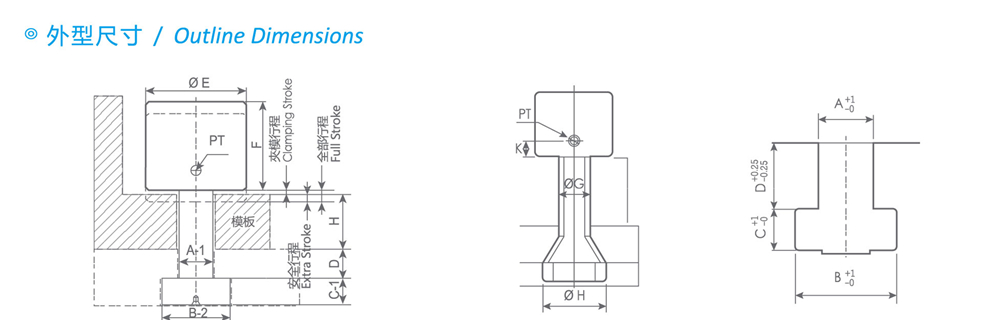

Clamp Dimensions
|
Model |
E |
F |
G |
H |
K |
MIN. |
PT |
|
TX-2 |
49 |
52 |
18 |
38 |
12 |
8 |
1/8 |
|
TX-4 |
68 |
60 |
25 |
59 |
15 |
10 |
1/4 |
|
TX-6 |
78 |
65 |
30 |
64 |
16 |
14 |
1/4 |
|
TX-10 |
98 |
71 |
40 |
79 |
16 |
17 |
1/4 |
|
TX-16 |
127 |
78 |
50 |
88 |
16 |
20 |
1/4 |
|
TX-25 |
148 |
100 |
60 |
98 |
15 |
23 |
1/4 |
