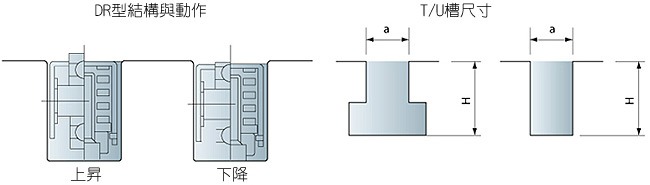

The DR type die lifter can be easily applied to different sizes of "T" type grooves or "U" type grooves by the addition and subtraction of the shims. Its basic length is 200mm and 300mm. When used together, it can produce a total change of every 100mm.
>> 规格特性
|
型号 |
a |
H |
|
DR-22 |
22 |
33-43 |
|
DR-28 |
28 |
45-58 |

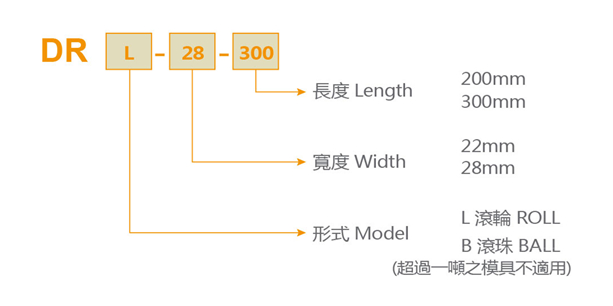

DR 型基本尺寸特性
|
基本型式 |
宽度 (mm) |
长度 (mm) |
弹簧数量 (pcs) |
单一弹簧举模力 (kgf) |
|
DRL-22-200/DRB22-200 |
22 | 200 | 4 |
37.5 |
|
DRL-22-300/DRB22-300 |
22 | 300 | 6 | 37.5 |
|
DRL-28-200/DRB28-200 |
28 | 200 | 4 | 75 |
|
DRL-28-300/DRB28-300 |
28 | 300 | 6 | 75 |
