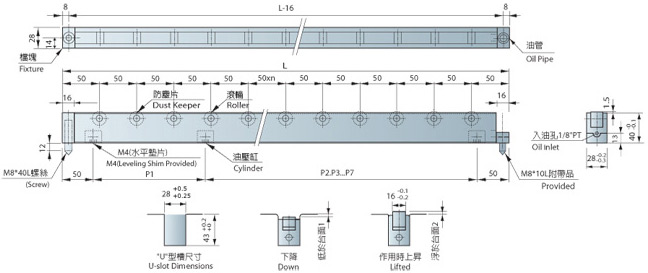

The DB type hydraulic pressure lifter is designed to move forward, backward, left and right by using the universal ball.
>> 规格特性
|
型号 |
总长度 |
滚珠数 |
油压缸 |
油压缸距离 (mm) |
|||||||
|
丁数 |
举模力 |
P1 | P2 | P3 | P4 | P5 | P6 | P7 | |||
|
DB-28-400 |
400 | 7 | 2 | 1000 | 300 |
|
|
|
|
|
|
|
DB-28-500 |
500 | 9 | 3 | 1500 | 90 | 310 |
|
|
|
|
|
|
DB-28-600 |
600 | 11 | 4 | 2000 | 100 | 340 | 60 |
|
|
|
|
|
DB-28-700 |
700 | 13 | 4 | 2000 | 150 | 350 | 100 |
|
|
|
|
|
DB-28-800 |
800 | 15 | 5 | 2500 | 95 | 95 | 390 | 120 |
|
|
|
|
DB-28-900 |
900 | 17 | 5 | 2500 | 110 | 110 | 410 | 170 |
|
|
|
|
DB-28-1000 |
1000 | 19 | 6 | 3000 | 130 | 130 | 420 | 110 | 110 |
|
|
|
DB-28-1100 |
1100 | 21 | 6 | 3000 | 120 | 120 | 460 | 150 | 150 |
|
|
|
DB-28-1200 |
1200 | 23 | 7 | 3500 | 300 | 200 | 200 | 150 | 150 | 100 |
|
|
DB-28-1300 |
1300 | 25 | 7 | 3500 | 250 | 150 | 300 | 300 | 150 | 150 |
|
|
DB-28-1400 |
1400 | 27 | 8 | 4000 | 350 | 250 | 200 | 150 | 150 | 100 | 100 |
|
DB-28-1500 |
1500 | 29 | 8 | 4000 | 350 | 350 | 200 | 150 | 150 | 100 | 100 |
* 注:订购时，如有下料孔请附台盘图
